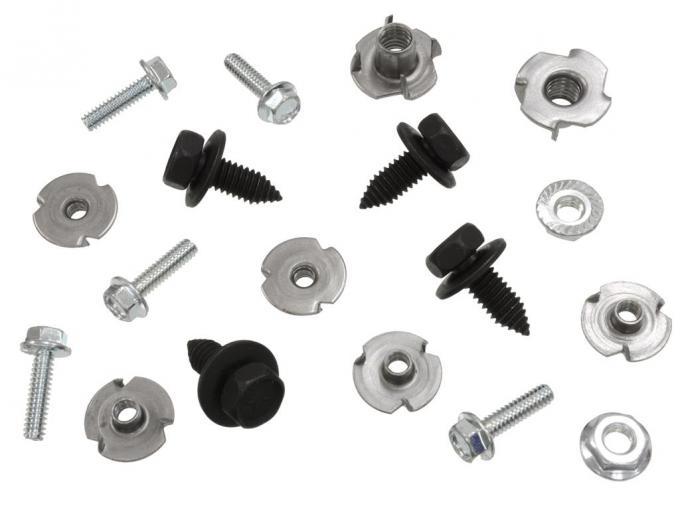

Fan shroud and extension mount kit designed for 1969-1976 Chevrolet Corvette to securely fasten plastic fan shrouds and extension panels. The kit provides positive, vibration-resistant mounting using T-nuts that lock into thin plastic or sheetmetal, restoring correct shroud alignment and clearance for reliable cooling performance. Built for durability and ease of installation, this kit helps maintain OEM appearance while preventing fan contact and reducing noise.
Features:
- Fits 1969-1976 Chevrolet Corvette
- Includes heavy-gauge mounting brackets and hardware for secure attachment
- Supplied T-nuts provide strong, low-profile threaded anchors for plastic shrouds
- Prevents fan-to-shroud contact, reduces vibration and noise, and restores proper airflow
- Durable, corrosion-resistant finish for long-term reliability and restoration projects
- Designed for straightforward installation with common hand tools
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes
Instructions:
- Park vehicle on level ground, set parking brake and disconnect battery for safety.
- Remove the fan and existing shroud or loosen as needed to access mounting locations per vehicle service procedure.
- Test-fit the extension brackets against the radiator/shroud mounting flange to establish correct alignment. Mark any new hole locations if necessary.
- If new holes are required in the plastic shroud or mounting flange, center-punch and drill pilot holes to the size recommended for the included T-nuts.
- Insert T-nuts into the shroud from the rear side and tap them flush with a hammer or mallet so the prongs engage the material securely.
- Position the mounting bracket or extension and install the supplied bolts through the bracket into the T-nuts. Start all fasteners by hand to ensure proper alignment.
- Tighten hardware evenly and progressively. Torque to a snug setting—avoid over-tightening (approximately 8–12 ft-lbs as a guideline) to prevent crushing plastic components.
- Reinstall the fan and any previously removed components. Rotate the fan by hand to confirm adequate clearance and that there is no rubbing.
- Reconnect the battery, run the engine, and verify secure mounting, quiet operation, and proper airflow.
