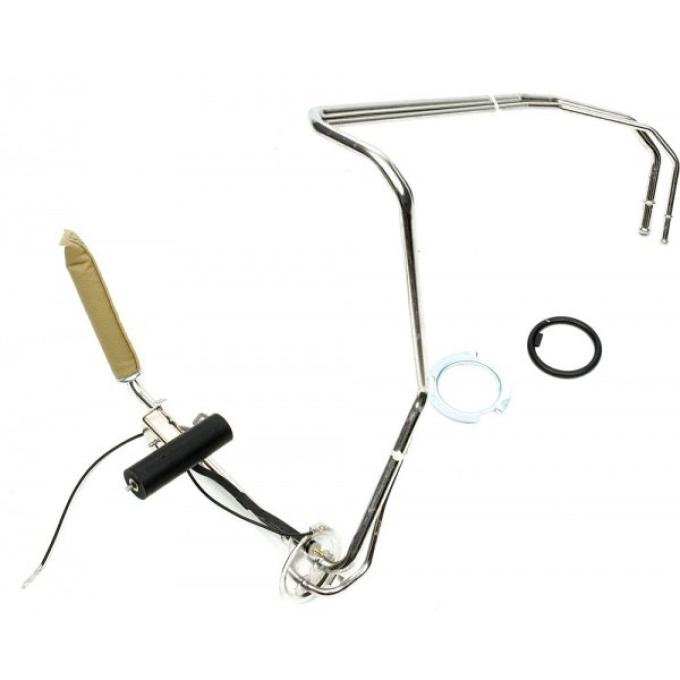

Direct-fit gas tank sending unit for 1976–1981 Camaro and Firebird and 1973–1979 Nova. Designed to replace worn or corroded senders, this unit restores accurate fuel gauge readings while providing a 3/8" return line for return-style fuel systems or EFI conversions. Constructed with corrosion-resistant components and a precision float arm, it delivers reliable, long-lasting performance and straightforward electrical and fuel-line connections for easier installation during restorations or repairs.
Features:
- Fits 1976–1981 Camaro and Firebird, and 1973–1979 Nova.
- Includes a 3/8" return line connection for return-style fuel systems and EFI conversions.
- Corrosion-resistant construction for improved durability and long service life.
- Precision float arm provides accurate fuel level readings and gauge reliability.
- Direct-fit replacement that uses factory mounting pattern and standard electrical terminals.
- Ideal for restorations and replacements to restore fuel gauge accuracy and system functionality.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-90 minutes
Instructions:
- Work in a well-ventilated area and disconnect the negative battery cable to prevent sparks.
- Relieve fuel system pressure per vehicle procedure and, if necessary, reduce fuel level in tank by siphoning into an approved container.
- Raise and securely support the vehicle with jack stands or use ramps so you can access the fuel tank.
- If applicable, remove any access panels in the trunk or under the rear seat. Otherwise, support and carefully lower the fuel tank enough to access the sending unit.
- Place a drain pan under fuel lines and disconnect fuel hoses and electrical connectors from the sending unit. Cap or plug lines to minimize spills.
- Loosen and remove the retaining ring or bolts that secure the old sending unit. Carefully lift the old unit out to avoid damaging the float or tank sealing surface.
- Clean the sender mounting surface and inspect the tank for debris or corrosion. Replace the mounting gasket/seal if included or whenever the old seal is damaged.
- Install the new sending unit into the tank, ensuring the float arm is positioned correctly and the gasket is seated evenly. Secure with the retaining ring or bolts to the factory torque specification if available.
- Route and connect the 3/8" return line to the vehicle's return plumbing, using proper clamps or fittings to prevent leaks. Reconnect fuel supply and vent lines and attach electrical connections.
- Carefully raise and secure the tank back into position (if removed) and reinstall any access panels or interior trim.
- Reconnect the negative battery cable, turn the ignition to the ON position to prime the fuel system, and check for leaks at all fittings and connections.
- Start the engine and verify correct gauge operation. Re-check fittings after a short test drive and retorque fasteners if necessary.
About Redline Restomotive
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Crafted for both durability and aesthetic accuracy, Redline Restomotive® parts are ideal for those who value authenticity in their restoration projects. Whether restoring a car for display, personal enjoyment, or roadworthiness, customers rely on Redline Restomotive® for parts that not only fit perfectly but also contribute to the overall integrity and longevity of the vehicle. Each item is carefully engineered to replicate the fit, finish, and functionality of original components, making Redline Restomotive® a trusted name in restoration circles.
The extensive product catalog from Redline Restomotive® covers a wide variety of categories, allowing classic car owners to source everything from essential mechanical parts to subtle interior details. This comprehensive approach enables a cohesive restoration experience, where customers can confidently maintain both the exterior and interior authenticity of their vehicles. With Redline Restomotive®, every detail matters, providing the perfect balance between innovation and tradition for classic car preservation.
For more information or to explore their product offerings, you can visit retailers such as Muscle Cars & Classics, which feature a comprehensive selection of Redline Restomotive® products.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Camaro |
1976 - 1981 |
| Chevrolet |
Nova |
1976 - 1979 |
| Pontiac |
Firebird |
1977 - 1980 |
| Pontiac |
Phoenix |
1977 - 1979 |
| Pontiac |
Ventura |
1976 - 1977 |
