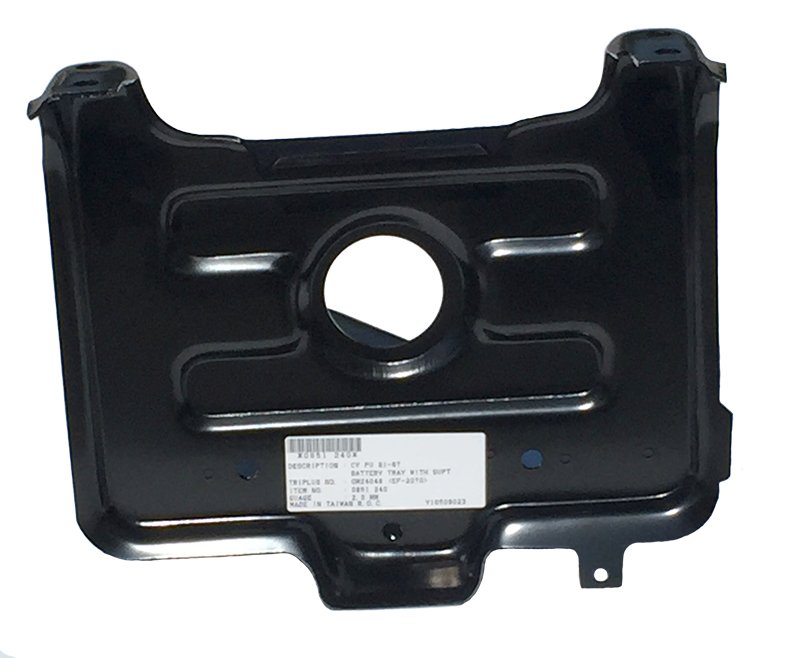

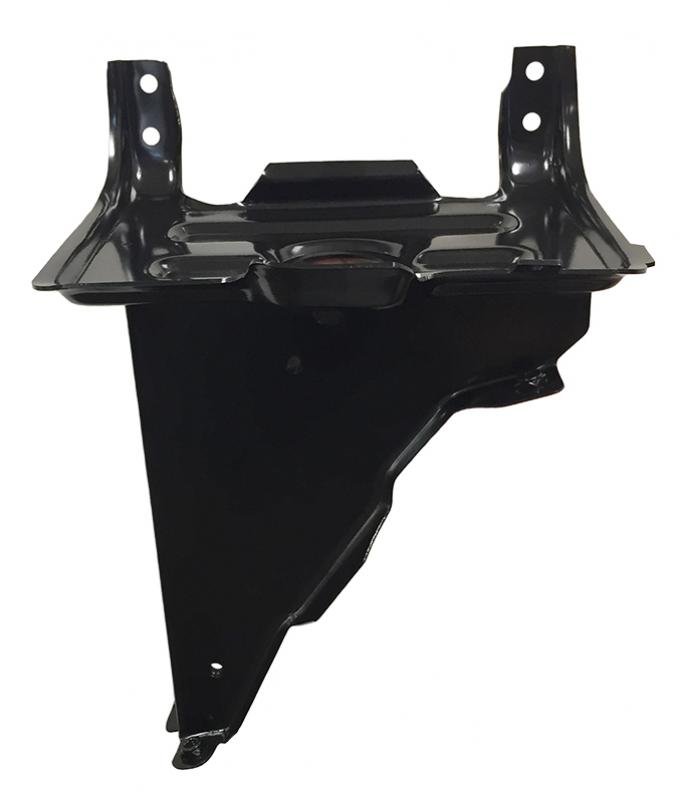

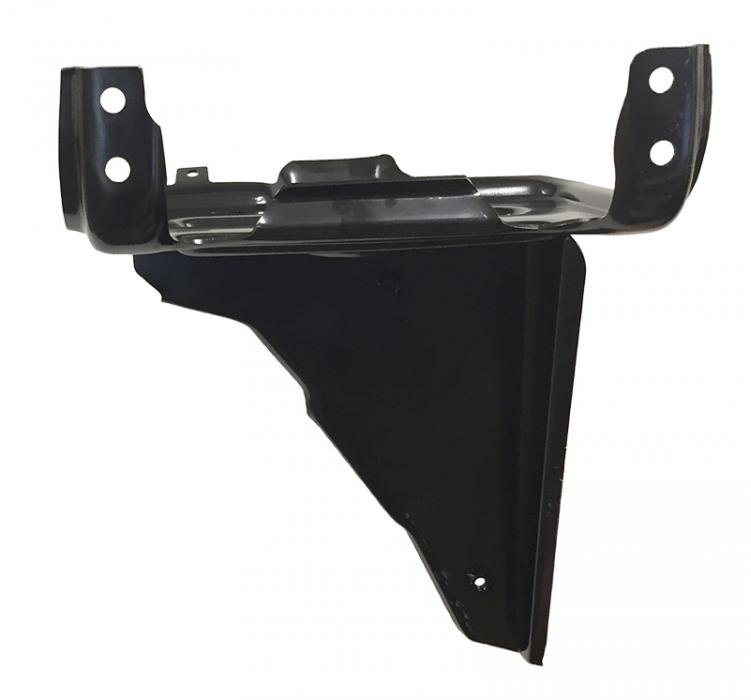

This heavy-gauge battery tray assembly with integrated support is engineered to restore correct battery positioning and secure mounting on 1981–1991 Chevy trucks. Designed as a direct replacement for corroded or damaged factory trays, it prevents battery movement, reduces vibration, and helps maintain reliable electrical grounding. The corrosion-resistant finish and simple bolt-in design deliver long-lasting durability and straightforward installation for restoration or maintenance projects.
Features:
- Fitment: 1981–1991 Chevrolet C/K-series pickup trucks (C10, C20, K10, K20 and similar models).
- Heavy-gauge steel construction with a corrosion-resistant coating for long service life.
- Includes support bracket and mounting hardware to secure the battery and restore OEM location.
- Direct bolt-in replacement for worn or rusted factory battery trays—no modification required.
- Helps reduce vibration, prevent terminal damage, and improve grounding reliability.
- Ideal restoration-grade part for repairing classic Chevy trucks; easy to install with basic tools.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes
Instructions:
- Park vehicle on level ground, set parking brake and wear safety gear. Disconnect the negative (ground) battery cable first, then the positive cable.
- Remove the battery from the tray and set it in a safe, supported location or on a battery cradle/jack.
- Remove the hold-down clamp and unbolt the existing battery tray and support bracket. Retain any reusable hardware if undamaged; discard severely corroded parts.
- Clean the tray mounting area and battery tray contact surfaces with a wire brush or emery cloth to remove rust and debris.
- Test-fit the new tray assembly and support to ensure proper position and alignment with factory mounting holes.
- Apply a light coat of anti-seize or rust inhibitor to the mounting bolts (optional), then secure the tray and support using the supplied or appropriate hardware. Tighten bolts evenly until the tray is firmly seated.
- Reinstall the battery, mount the hold-down clamp, and reconnect the battery cables (positive first, then negative). Ensure terminals are clean and tight.
- Check that the battery is secure and that no wiring or components are contacting the tray. Lower vehicle (if raised) and perform a final inspection for proper fit and secure mounting.
About Redline Restomotive
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Crafted for both durability and aesthetic accuracy, Redline Restomotive® parts are ideal for those who value authenticity in their restoration projects. Whether restoring a car for display, personal enjoyment, or roadworthiness, customers rely on Redline Restomotive® for parts that not only fit perfectly but also contribute to the overall integrity and longevity of the vehicle. Each item is carefully engineered to replicate the fit, finish, and functionality of original components, making Redline Restomotive® a trusted name in restoration circles.
The extensive product catalog from Redline Restomotive® covers a wide variety of categories, allowing classic car owners to source everything from essential mechanical parts to subtle interior details. This comprehensive approach enables a cohesive restoration experience, where customers can confidently maintain both the exterior and interior authenticity of their vehicles. With Redline Restomotive®, every detail matters, providing the perfect balance between innovation and tradition for classic car preservation.
For more information or to explore their product offerings, you can visit retailers such as Muscle Cars & Classics, which feature a comprehensive selection of Redline Restomotive® products.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Blazer |
1987 - 1991 |
| Chevrolet |
C10 |
1981 - 1986 |
| Chevrolet |
C20 |
1981 - 1987 |
| Chevrolet |
C30 |
1981 - 1986 |
| Chevrolet |
K10 |
1981 - 1986 |
| Chevrolet |
K20 |
1981 - 1986 |
| Chevrolet |
K30 |
1981 - 1986 |
| Chevrolet |
Suburban |
1987 - 1991 |
| GMC |
C1500 Suburban |
1981 - 1986 |
| GMC |
C2500 Suburban |
1981 - 1986 |
| GMC |
Jimmy |
1981 - 1991 |
| GMC |
K1500 Suburban |
1981 - 1986 |
| GMC |
K1500 |
1981 - 1986 |
| GMC |
K2500 Suburban |
1981 - 1986 |
| GMC |
K2500 |
1981 - 1986 |
| GMC |
K3500 |
1981 - 1986 |
| GMC |
R1500 Suburban |
1987 - 1991 |
| GMC |
R2500 Suburban |
1987 - 1991 |
| GMC |
V1500 Suburban |
1987 - 1991 |
| GMC |
V2500 Suburban |
1987 - 1991 |
